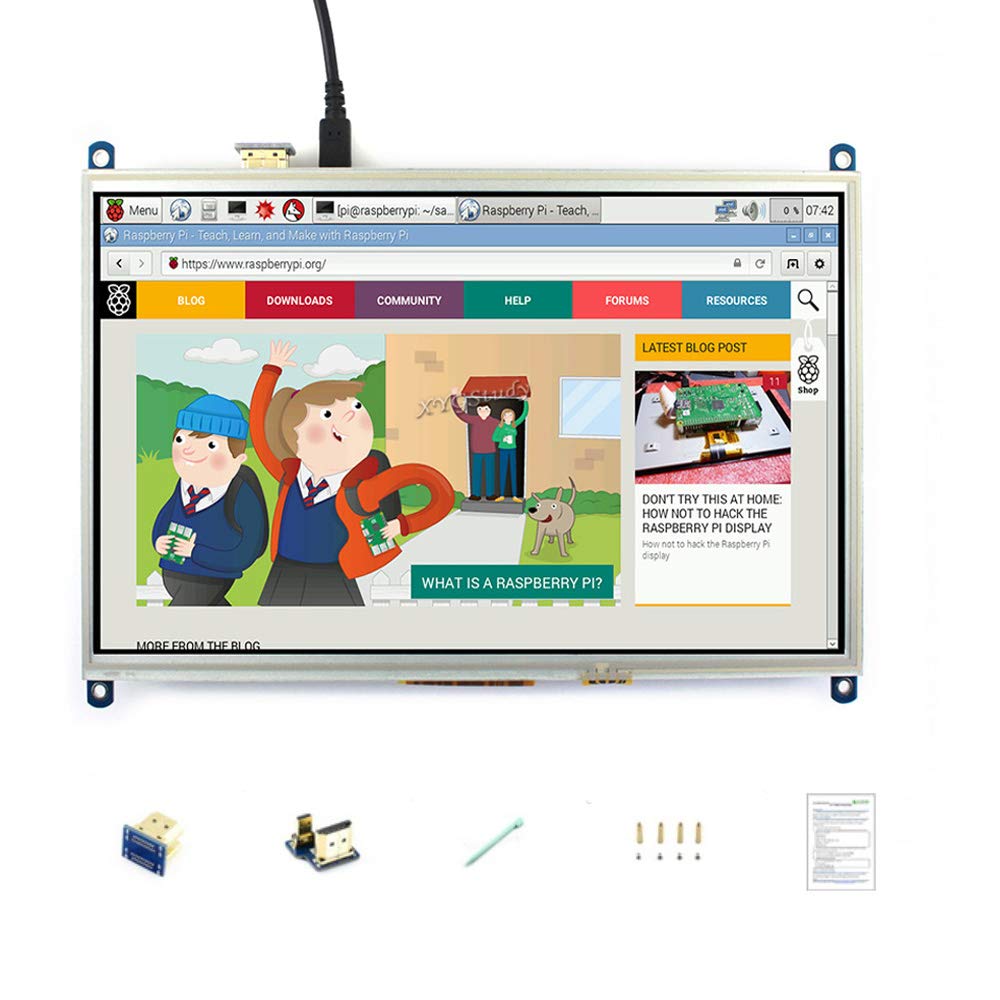

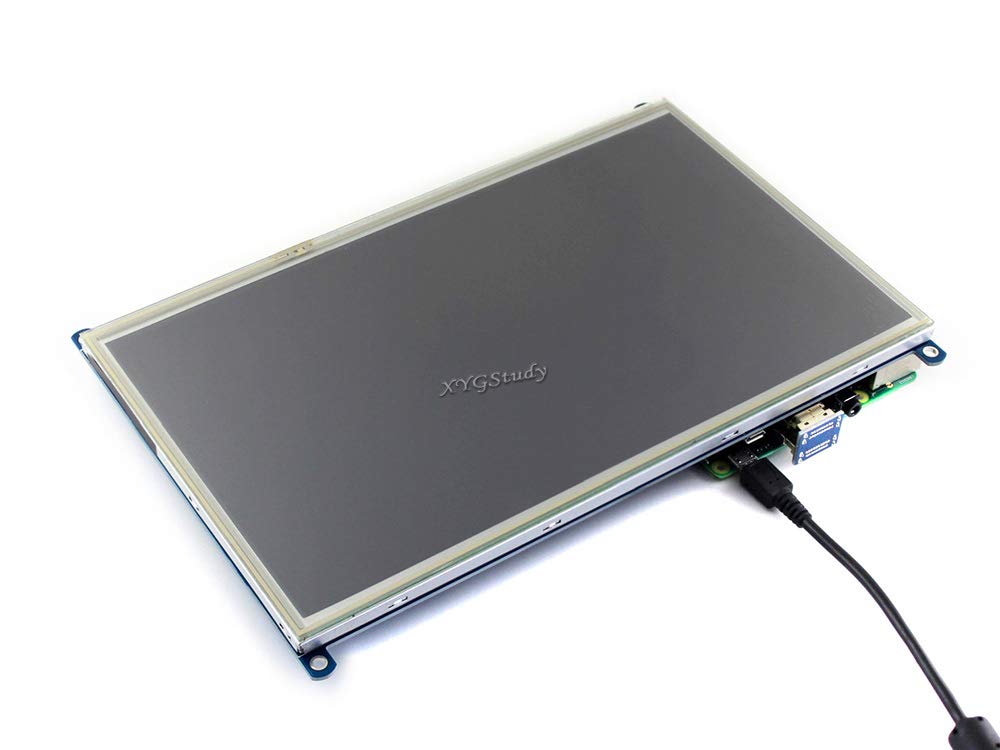

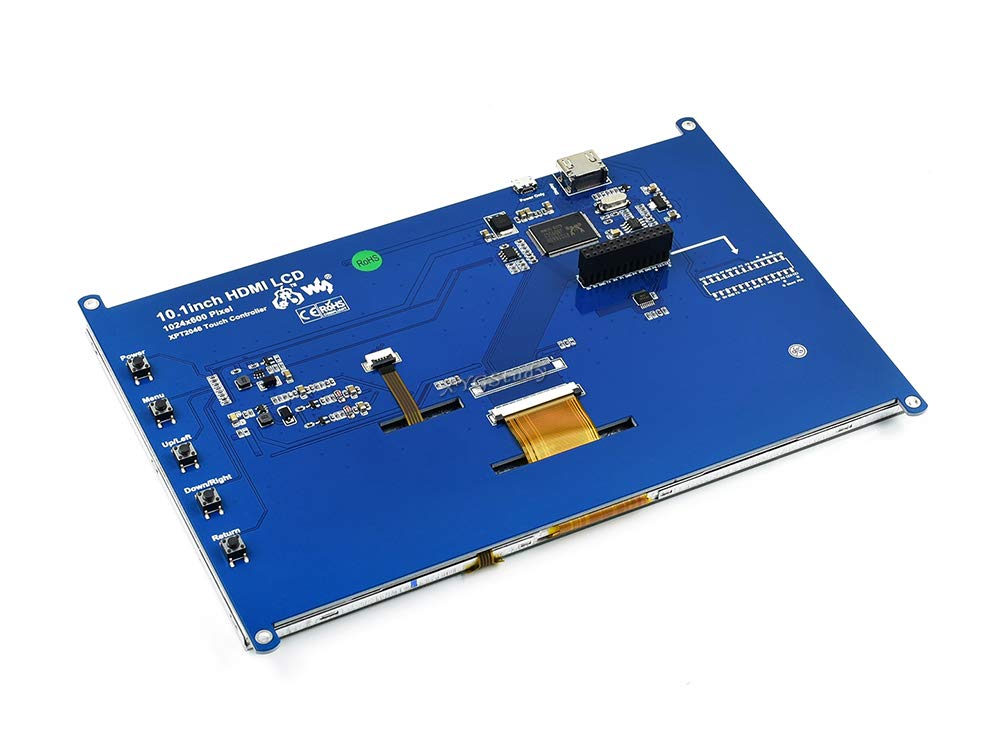

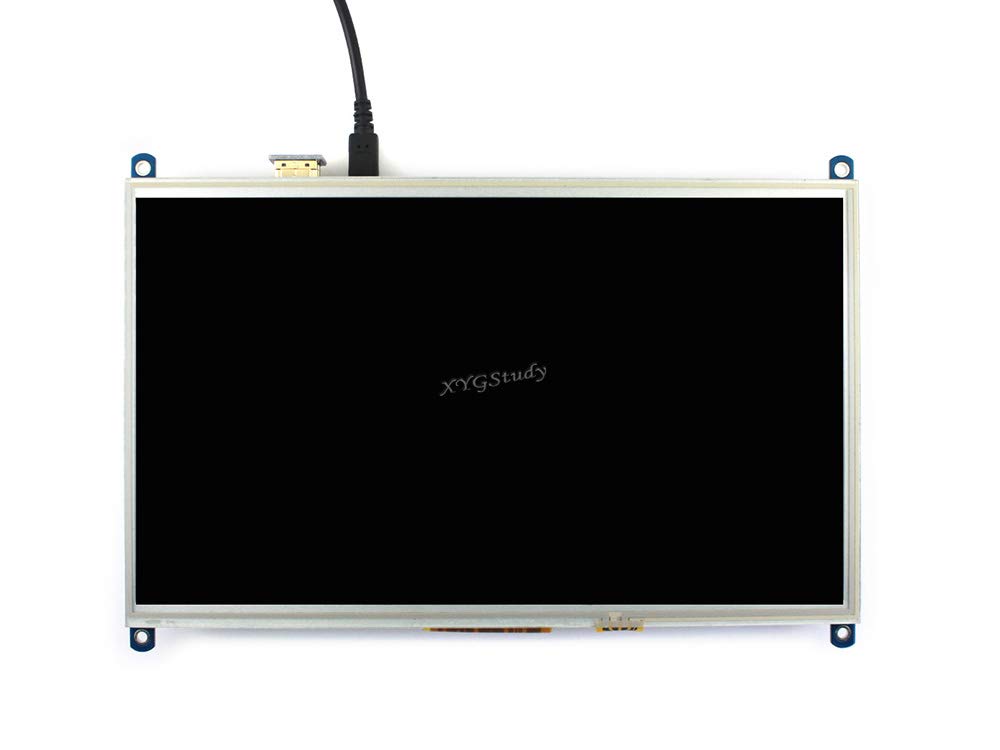

10.1 Inch 1024×600 Resistive Touch Screen Monitor with HDMI Interface - Compatible with Raspberry Pi 4/3/2 Model B/B+, Supports Raspbian & Ubuntu - Perfect for DIY Projects, Home Automation, and Embedded Systems

Features 1024x600 hardware resolution Resistive touch controlIPS technology, very wide viewing angle Compatible and Direct-connect with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero, which requires an HDMI cable) Drivers provided (works with your own Raspbian/Ubuntu/Kali/Retropie) Also works as a computer monitor, in this case, touch panel is unavailable and HDMI cable is required HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)Backlight can be turned off to lower power consumption FAQ Why the LCD doesn't work with my Raspbian? * To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual. * However, for the first testing, you may want to use our provided image directly. Why the LCD still doesn't work with the provided image? * Make sure the hardware connection is correct and connects fine. * Make sure the image in TF card is burnt correctly. * The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact. Which power supply should I use? * It is recommended to use a 5V/3A power adapter for the Raspberry Pi other than USB connection, otherwise the Pi may failed to start up because the PC's USB port might have not enough power. * For large size LCDs, say, 10inch diagonal or more, another stand-alone power adapter is also required to provide power to the LCD. Package Contains 10.1inch HDMI LCD x 1 HDMI connector x 1HDMI to micro HDMI connector x1 Touch pen x 1 RPi screws pack (4pcs) x 1Quick start sheet x1 For more resources you may need, pls contact me via Amazon message, i will send you then via attachment.

Part Number 10.1inch HDMI LCD

10.1inch Resistive Touch Screen LCD, 1024×600, HDMI, IPS, Supports Raspberry Pi / PC

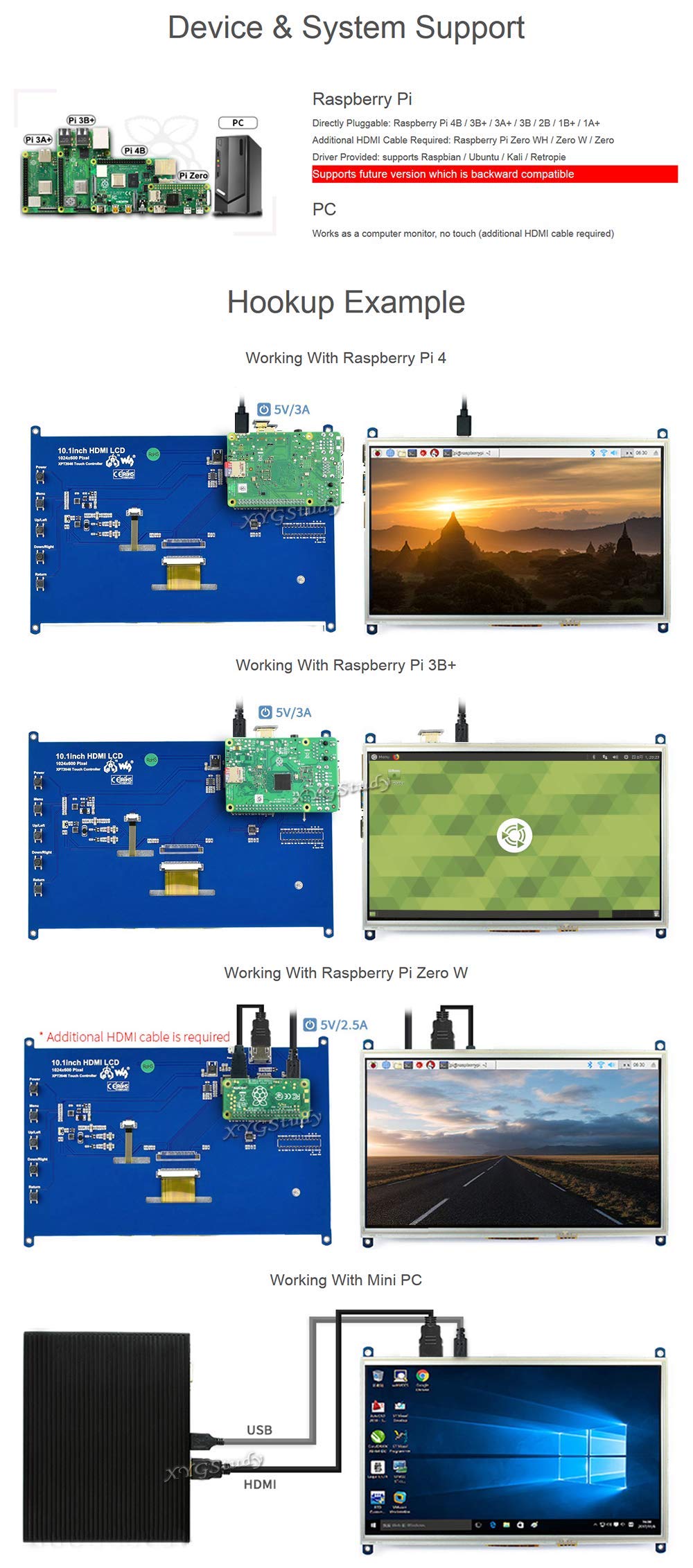

Directly Pluggable Raspberry Pi 4B / 3B+ / 3A+ / 3B / 2B / 1B+ / 1A+. Additional HDMI Cable Required Raspberry Pi Zero WH / Zero W / Zero.

Driver Provided supports Raspbian / Ubuntu / Kali / Retropie ( Supports future version which is backward compatible )

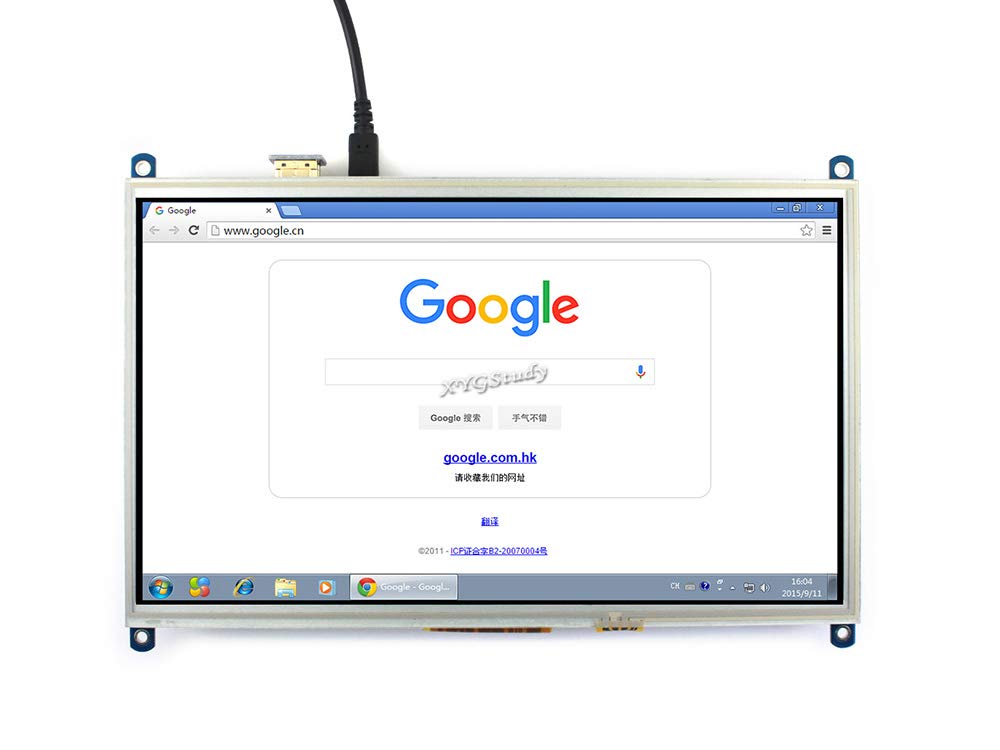

for connecting PC works as a computer monitor, no touch (additional HDMI cable required)
