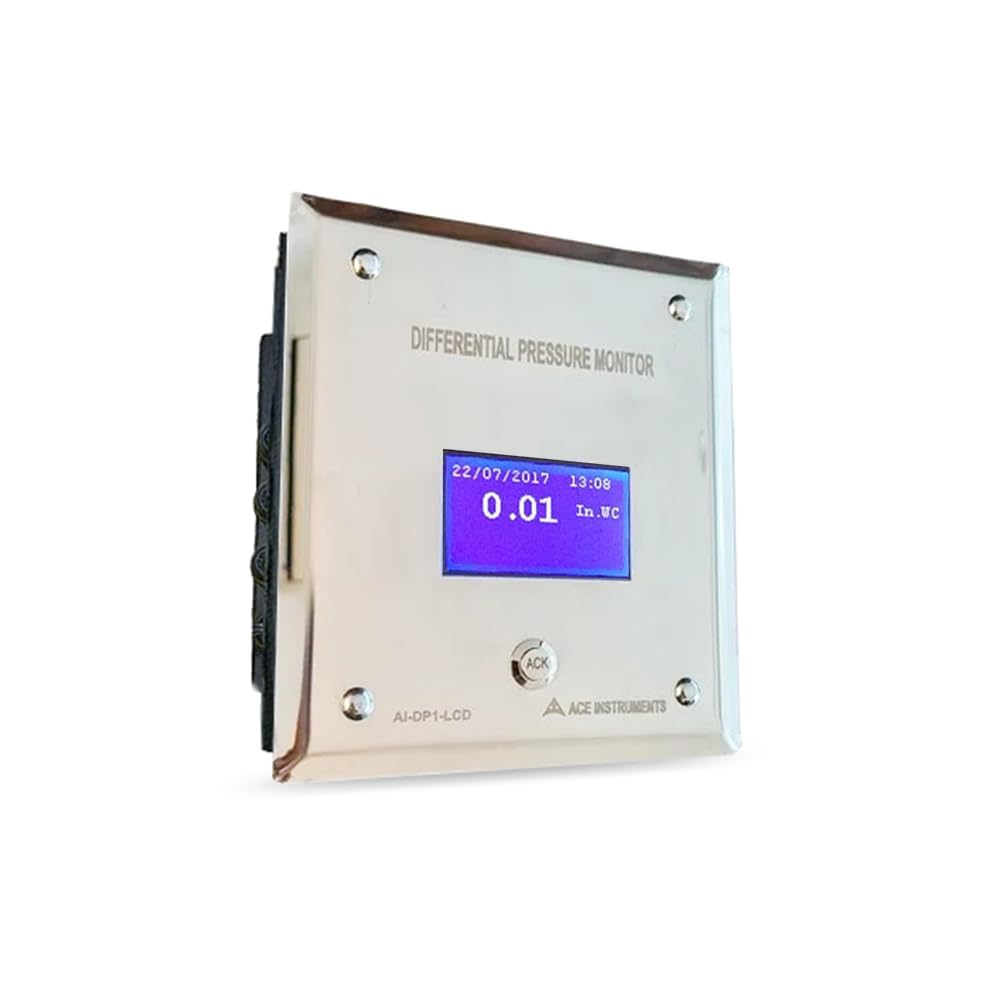

AI-DP1-LCD Digital Differential Pressure Gauge - Negative Pressure Monitor for Isolation Rooms, Pharma Clean Rooms & Laboratories | Wall-Mounted HVAC Airflow Measurement Device for Hospitals, Clinics and Medical Facilities

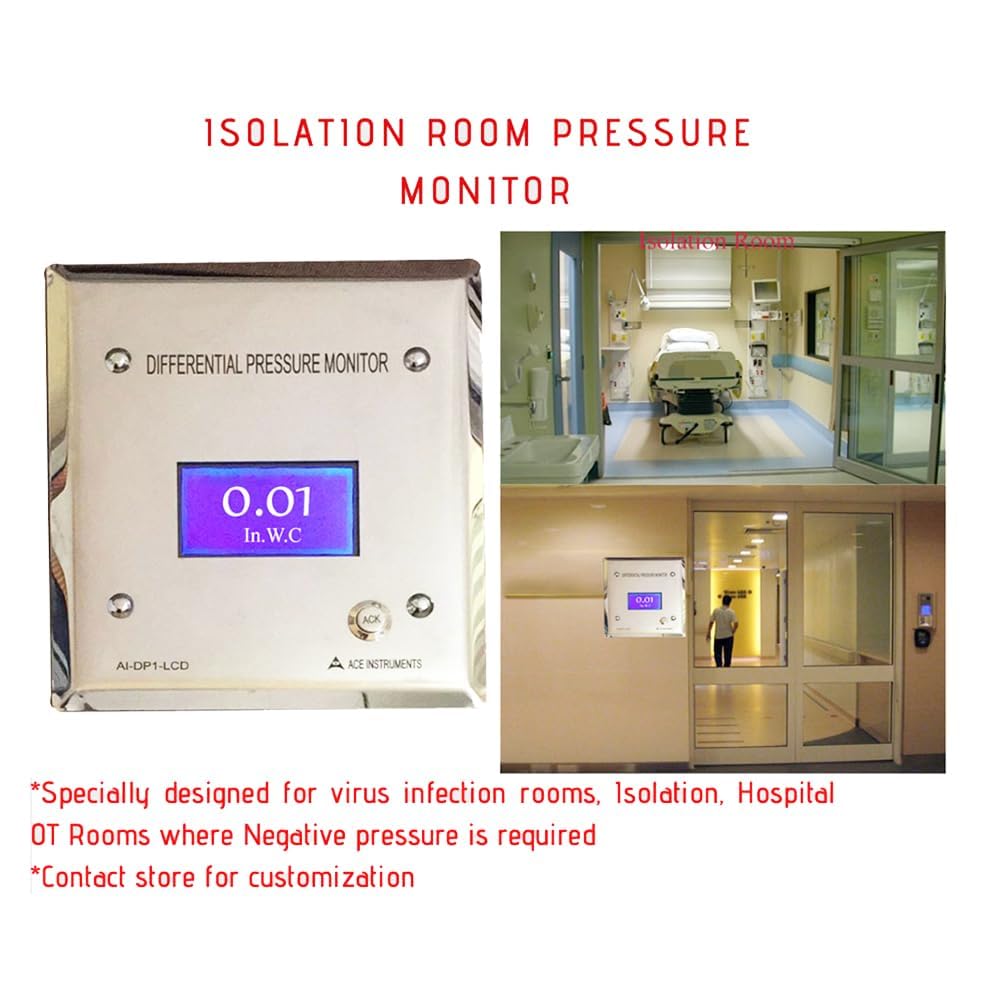

Ace Isolation Room Differential Pressure Monitor is equipped with a built-in differential pressure sensor with large & clear Graphic LCD display with a blue background for easy and clear readout. This Isolation room pressure monitor instrument comes with an integrated buzzer alarm for pressure limit violation alert, RS 485 Modbus communication for easy integration to BMS/SCADA/PLC. Features Of Isolation Room Differential Pressure Monitor : This Differential Pressure Monitor has a Large & clear graphic LCD display with engineering unit selection between In.W.C/Pascals/mm.W.CIt has Integrated buzzer alarm for set point violation alert. This Negative Pressure Monitor has a RS 485 Modbus communication for BMS / SCADA / PLC integration(Optional) Applications : Infection Rooms, Hospital Operation Theatre (OT) rooms, Isolation Rooms, Laminar Air Flow Cabinets, Pharmaceutical Clean Rooms, HVAC, Bio Safety Cabinets, AHUs, and numerous others.

Measuring Ranges-180 to 180 Pascals; Accuracy ±0.5% of Full Scale; | Display LCD; Maximum Over Pressure 4 Times the rated pressure; Sensors Integrated High Speed Differential Pressure Sensor.

Power 24V DC Typical; Alarms Built In High & Low Buzzer Alarm for Process Set Parameter Violation with Acknowledgement Key; Construction M.S. Powder Coated Body(Back)with Stainless Steel Front Flush Plate for Modular Wall Fitment in Clean Rooms.

Communication Isolated RS485 Modbus Protocols; Connection 2 Nos. Hose Nipples of 4mm. Stainless Steel at the Back; Medium Air or Gases ( Non Corrosive )

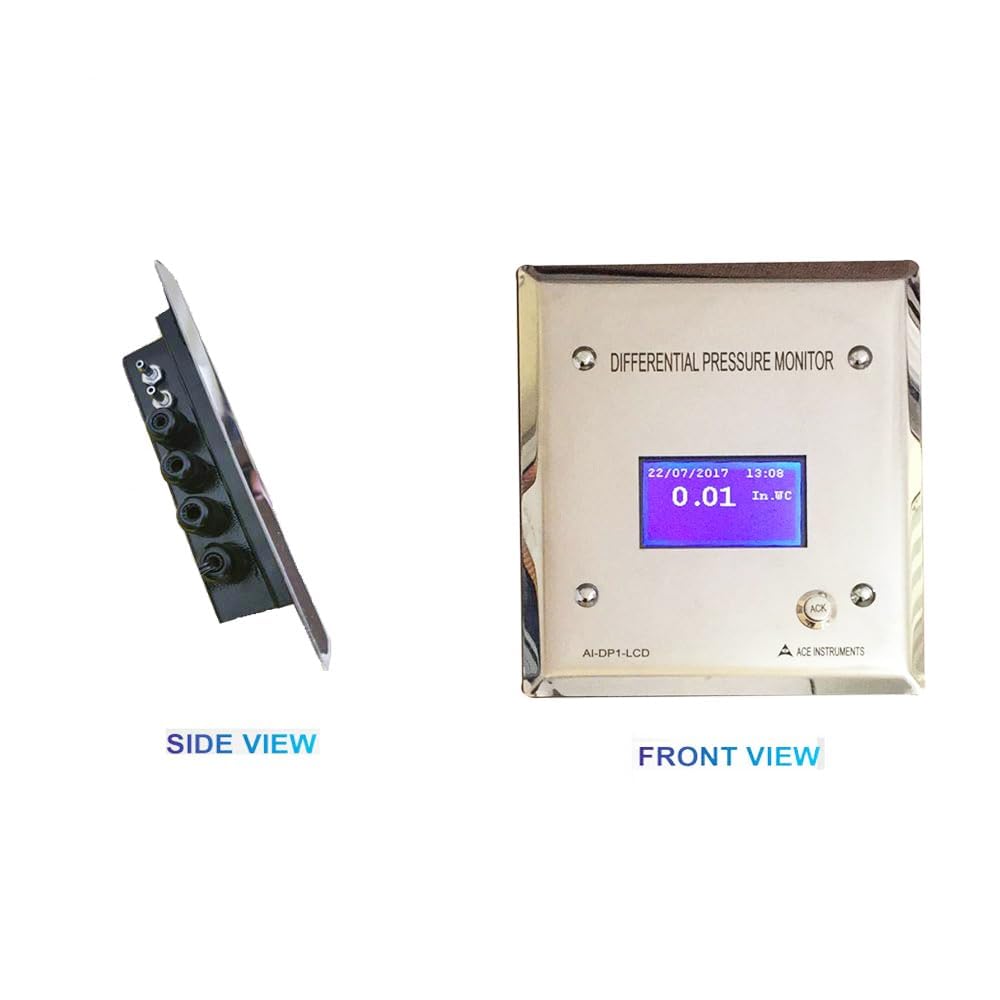

Dimensions Instrument Enclosure is in 100×90×30 mm. (W×H×D); Unit Selection Factory Fixed Selection for mm.W.C/Pascals.

Differential pressure Gauge Supply Scope 1 Pair of Wall-Mounted Hose Nipples, Power Adaptor, Instruction Manual and Factory Calibration Certificate | Applications Infection Rooms, Hospital Operation Theatre (OT) rooms, Isolation Rooms, Laminar Air Flow Cabinets, Pharmaceutical Clean Rooms, HVAC, Bio Safety Cabinets, AHUs and numerous others.
