11.6inch HDMI LCD Touchscreen Monitor with Case - 1920×1080 IPS Display, Tempered Glass Cover - Compatible with Raspberry Pi, Jetson Nano, BeagleBone Black - Perfect for DIY Projects, Computer Monitor & Embedded Systems

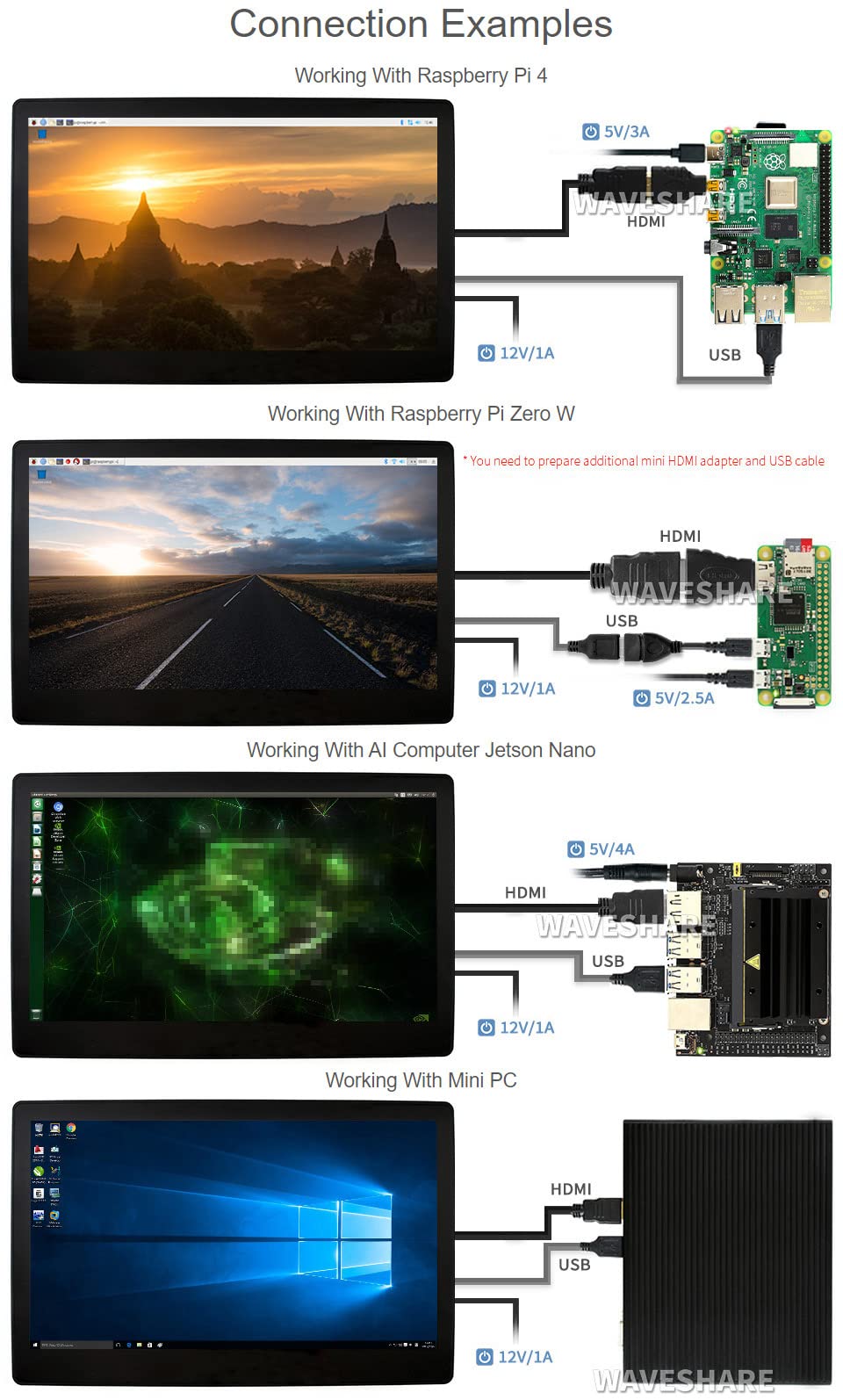

Features 11.6inch IPS screen with case,1920x1080 high resolutionToughened glass capacitive touch panel, 6H hardnessWhen works with Raspberry Pi, supports Raspberry Pi OS / Ubuntu / Kali and Retropie, single touch, and driver freeWhen work as a computer monitor, supports Windows 11/10/8.1/8/7, 10 points touch, and driver freeMulti-languages OSD menu, for power management, brightness/contrast adjustment, etc.3.5mm audio jack, supports HDMI audio outputEmbedded ferrite Hi-Fi speakerAlso supports VGA input (specific cable is required and should be purchased separately)75x75mm spacing mounting holes (M4 screw hole) for general wall mountComes with 75° tilt angle stand Working with PC This product supports Windows 11/10/8.1/8/7 OS.： 1. Connect 12/1A power adapter to the DC interface of LCD, after connecting the back light will light. 2. Connect the TOUCH interface of LCD to the USB interface of PC . Waiting for a moment, The touch will be recognized by Windows automatically 3. If you use HDMI, you need to connect the HDMI interface of LCD to the HDMI port of PC. About 5s later, you can see that the LCD display properly. If you need the audio, you can insert a 3.5mm earphones to HP ports. 4. If you need to use VGA communication,you need to connect the VGA interface of LCD to PC's VGA ports by Mini HDMI to VGA Cable Note: 1) If multi screen are connected to one PC at the same time, you can only control the cursor by this LCD, so please set the LCD as main screen. 2) Some of PC cannot support HDMI screen Hot Plug . In this case, restarting the PC may solve. 3) HP audio output only works while using HDMI communication 4) Mini HDMI to VGA Cable is necessary and need to be purchased separately if you use VGA communication. Working With Raspberry Pi 4 Working With Raspberry Pi Zero W Working With AI Computer Jetson Nano Working With Mini PC Working with Raspberry Pi Supports Raspberry Pi OS / Ubuntu / Kali and Retropie systems on Raspberry Pi. Please download the latest version of the image from the Raspberry Pi official website. 1. Download the compressed file to the PC, and extract the img file. 2. Connect the TF card to the PC and use SDFormatter to format the TF card. 3. Open the Win32DiskImager software, select the system image prepared in step 1, and click write to burn the system image. 4. After the programming is completed, open the config.txt file in the root directory of the TF card, add the following code at the end of config.txt and save it 5. Connect the 12V power supply to the DC interface of the LCD, and you can see that the LCD backlight is lit normally. 6. Connect the Touch port of the LCD to the USB port of the Raspberry Pi. 7. Connect the HDMI port of the LCD to the HDMI port of the Raspberry Pi, power on the Raspberry Pi, and wait for a few seconds to display normally.

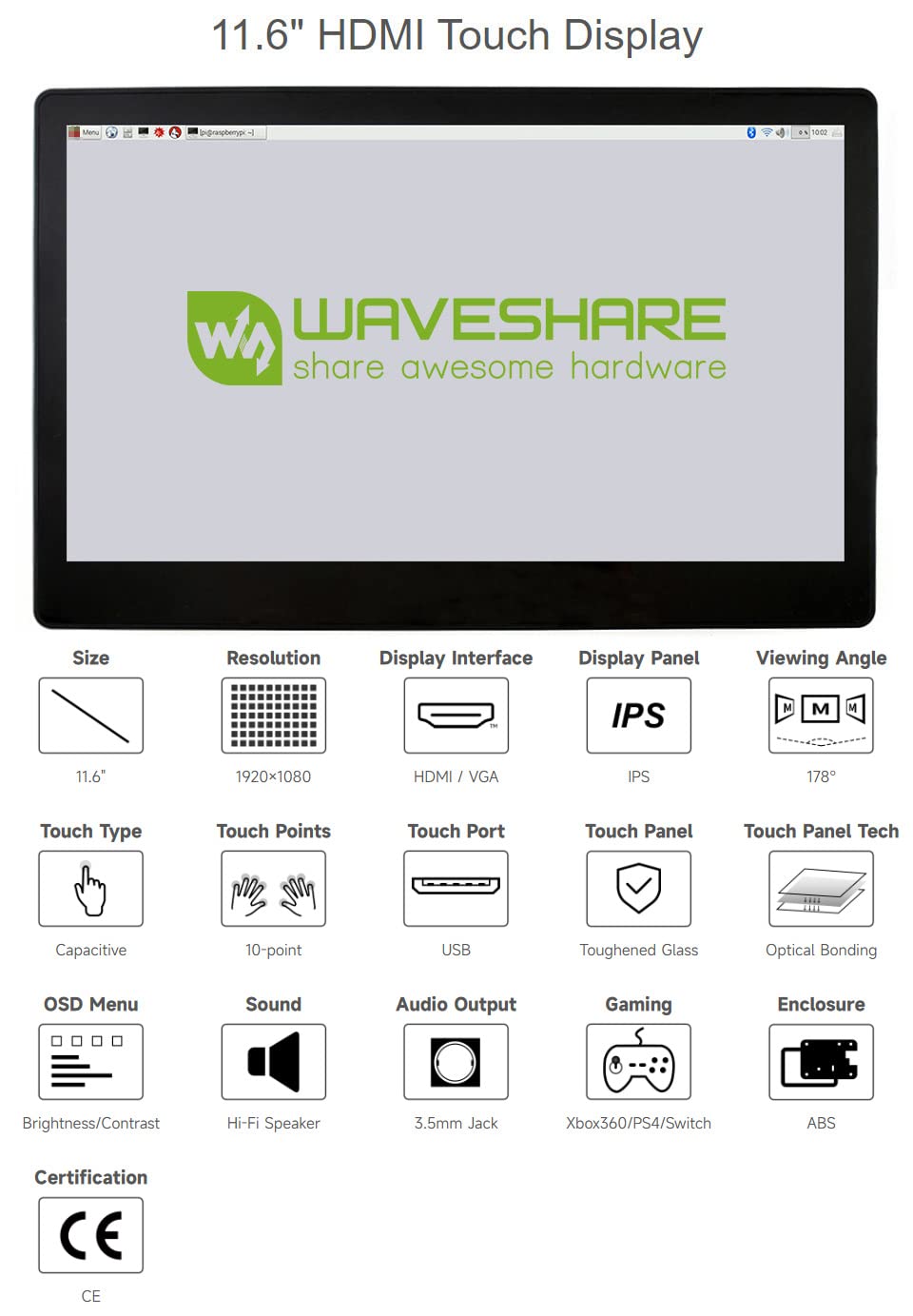

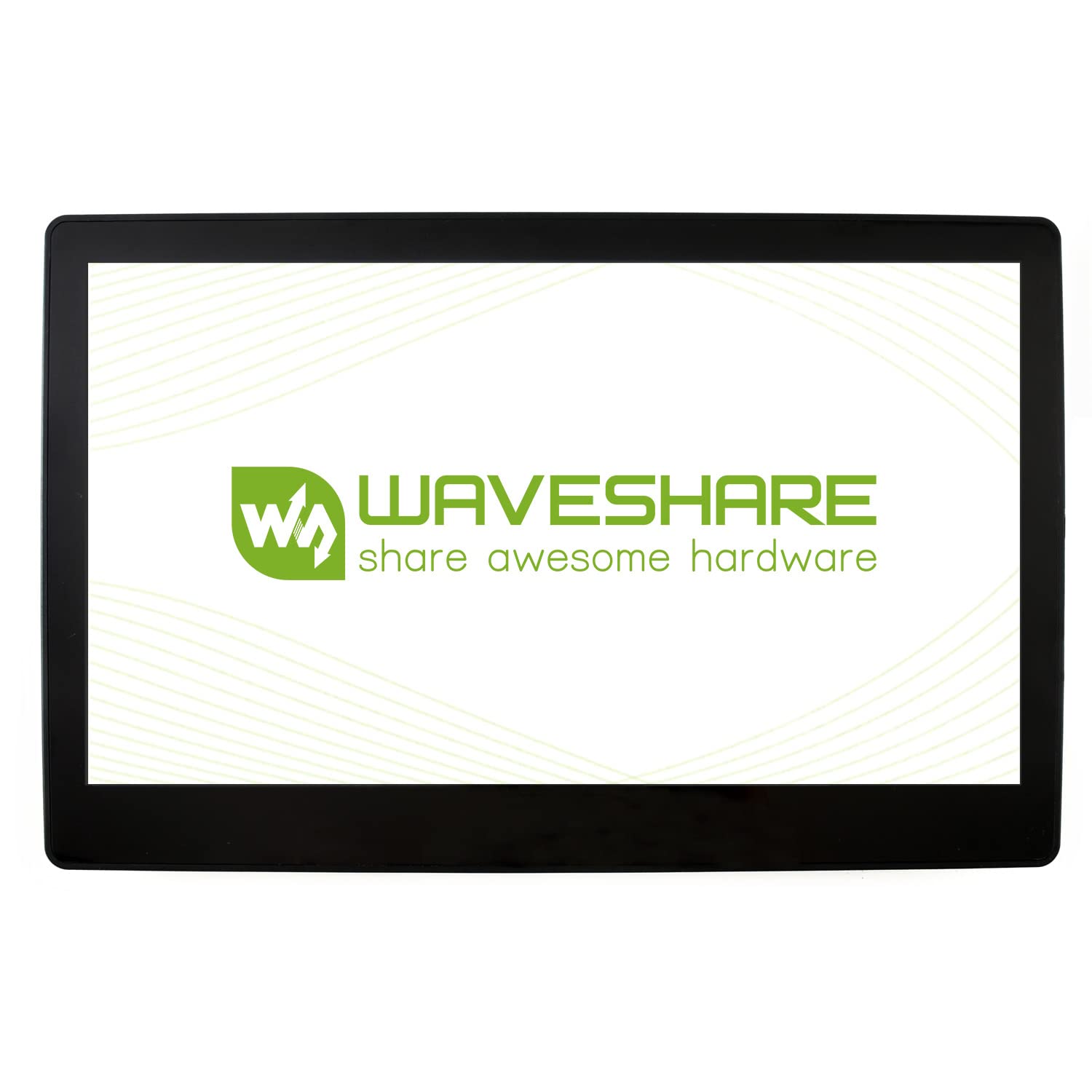

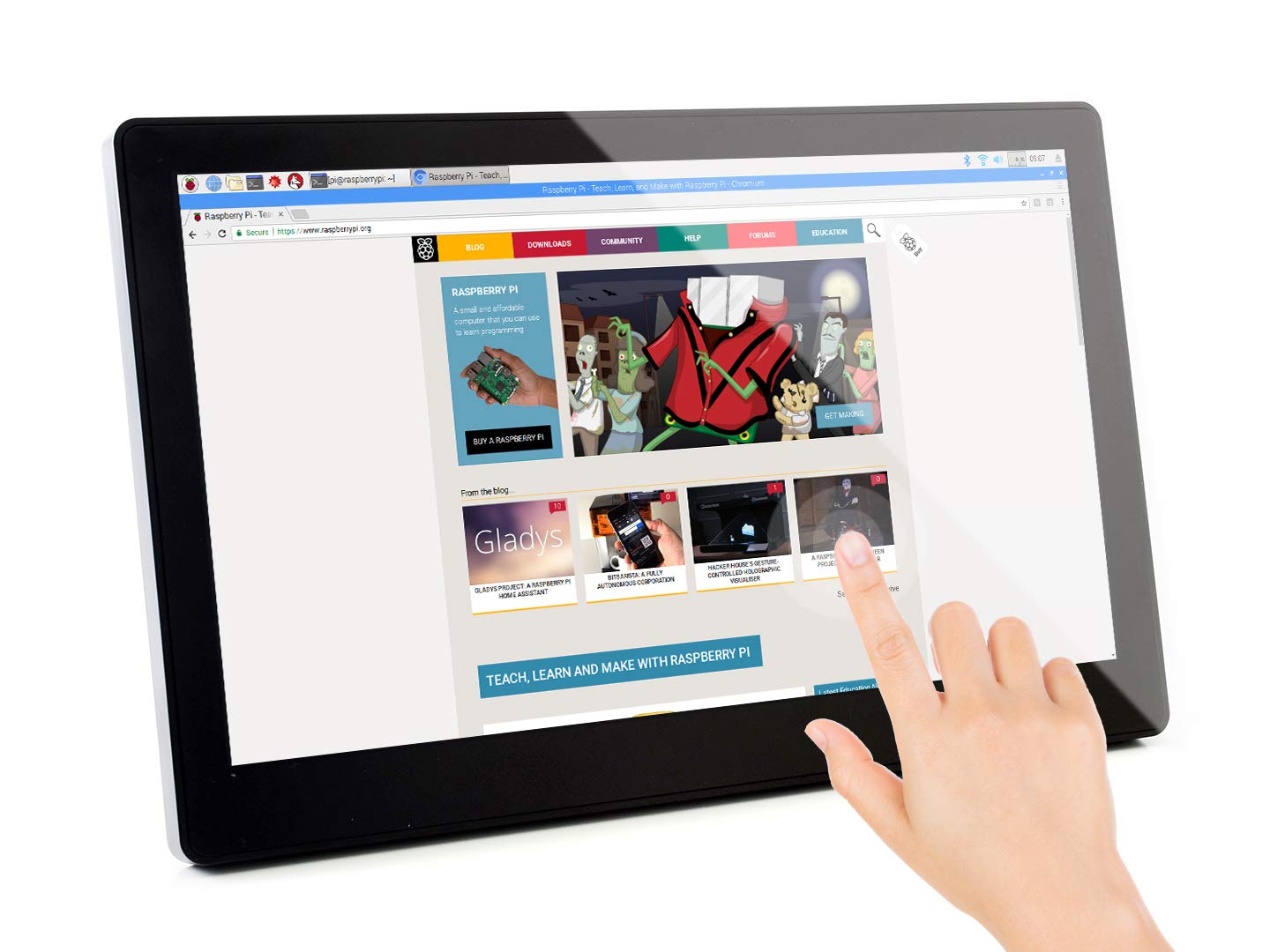

11.6inch IPS screen with case, 1920 x 1080 high resolution.Toughened glass capacitive touch panel, 6H hardness. Supports popular mini PCs such as Raspberry Pi, Jetson Nano, BB Black, as well as general desktop computers.

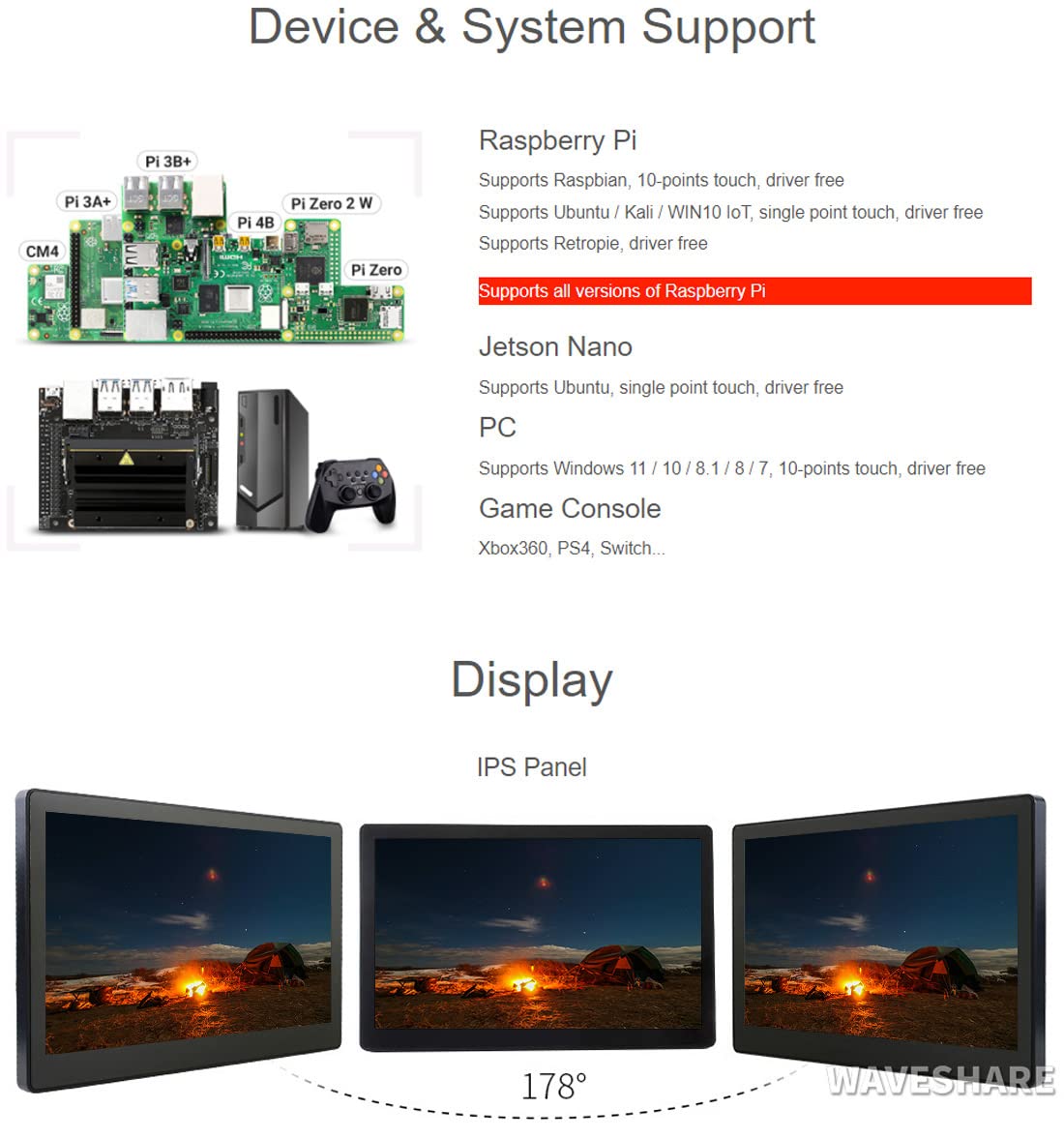

When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, single touch, and driver free. When working as a computer monitor, it supports Windows 11/10/8.1/8/7, 10-points touch, and driver free.

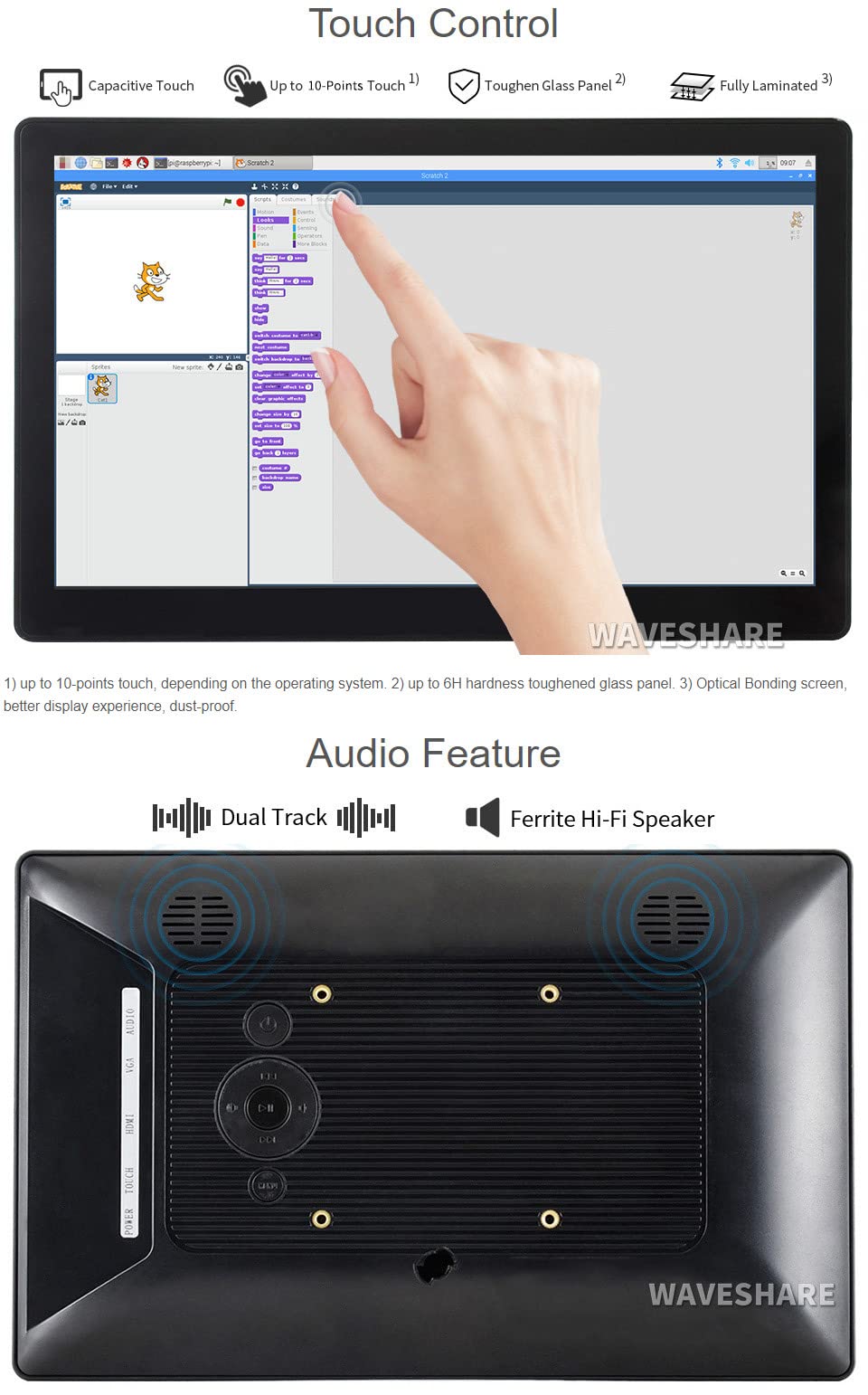

Multi-languages OSD menu, for power management, brightness/contrast adjustment, etc. 3.5mm audio jack, supports HDMI audio output. Embedded ferrite Hi-Fi speaker.

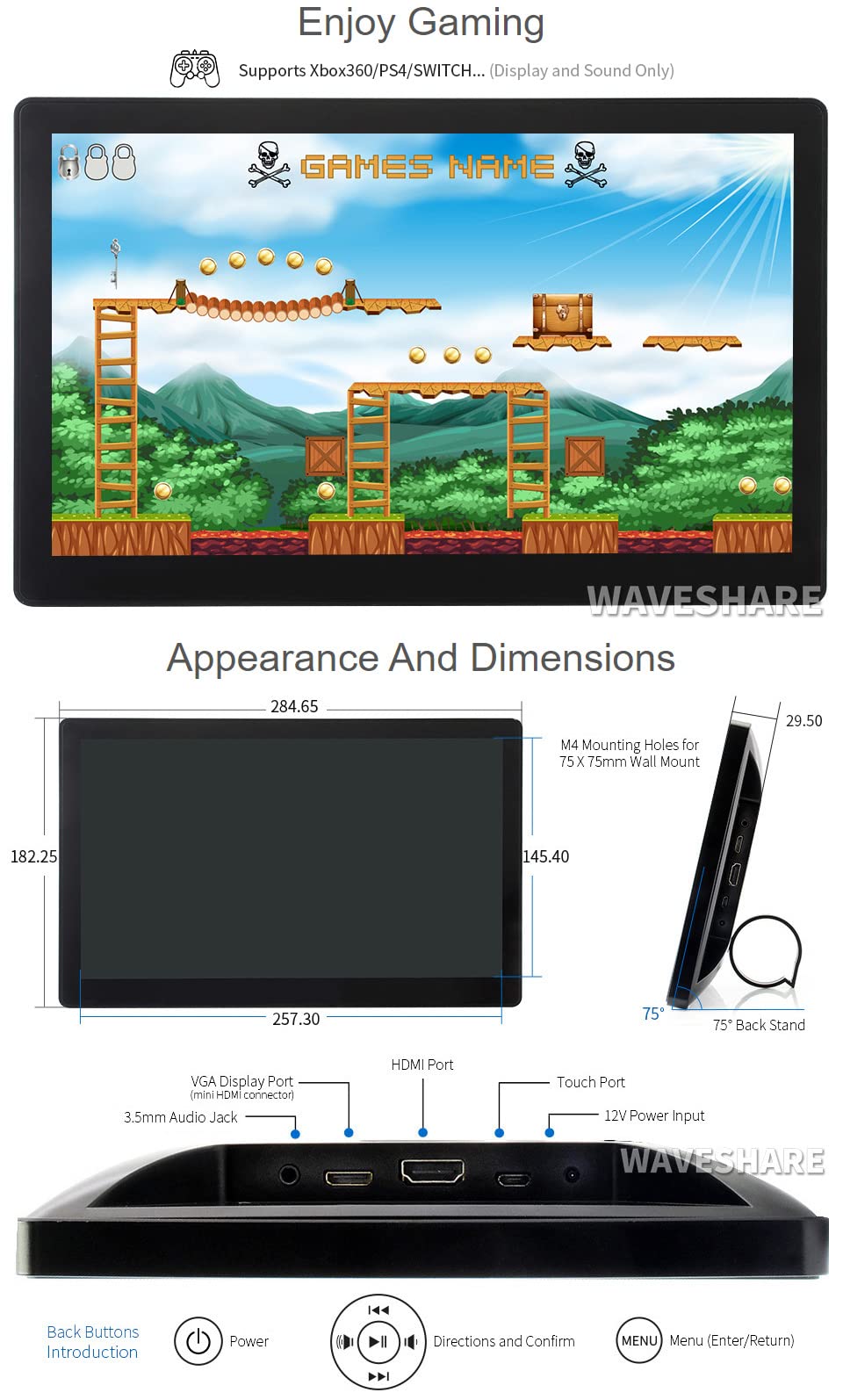

Also supports VGA input (specific cable is required and should be purchased separately). 75x75mm spacing mounting holes (M4 screw hole) for a general wall mount. Comes with a 75° tilt angle stand.

Limited by the game console OS, the touch function is unavailable. Sound support means, it is possible for the game console to output sound signal via LCD embedded speaker, external speaker interface, or earphone jack.
